Gmail

Gmail is Google’s cloud based email service that allows you to access your messages from any computer or device with just a web browser.

Supports authentication: OAuth 2.0

Set up the agent connector

Register your Scalekit environment with the Gmail connector so Scalekit handles the authentication flow and token lifecycle for you. The connection name you create will be used to identify and invoke the connection programmatically. Then complete the configuration in your application as follows:

Caution

Google applications using scopes that permit access to certain user data must complete a verification process.

1. Set up auth redirects

   • In Scalekit dashboard, go to Agent Auth → Create Connection. Find Gmail and click Create.

     Note

     By default, a connection using Scalekit’s credentials will be created. If you are testing, go directly to the Usage section. Before going to production, update your connection by following the steps below.

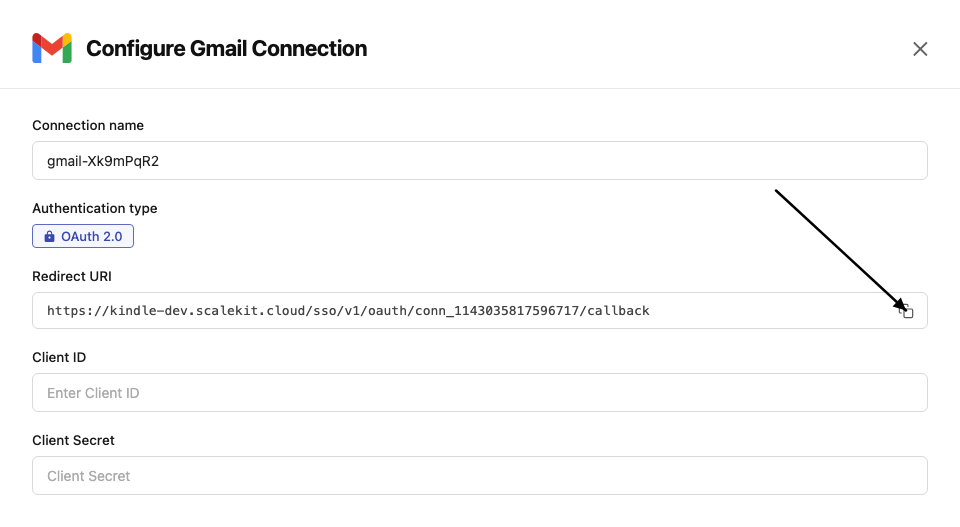

   • Click Use your own credentials and copy the redirect URI. It looks like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback.



   • Navigate to Google Cloud Console → APIs & Services → Credentials. Click + Create Credentials, then OAuth client ID. Choose Web application as the application type.



   • Under Authorized redirect URIs, click + Add URI, paste the redirect URI, and click Create.



2. Enable Gmail API

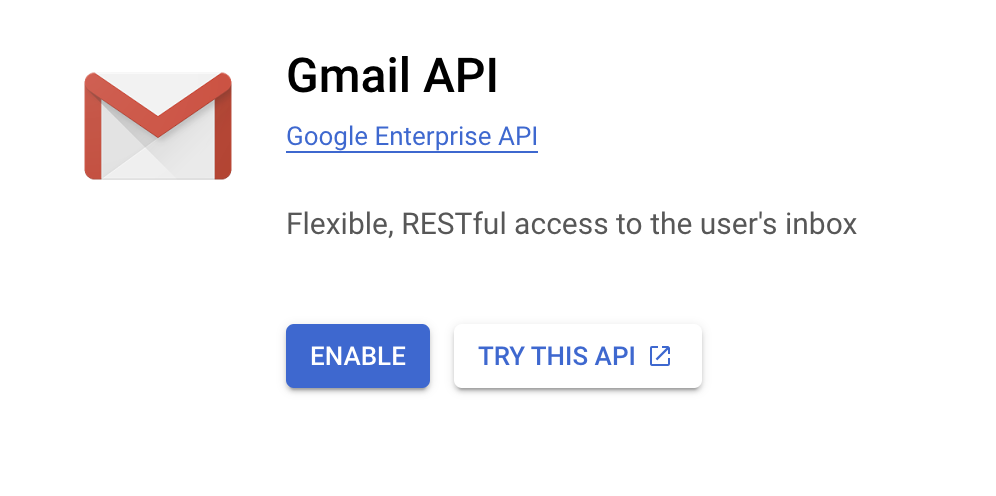

   • In Google Cloud Console, go to APIs & Services → Library. Search for “Gmail API” and click Enable.



3. Get client credentials

   Google provides your Client ID and Client Secret after you create the OAuth client ID in step 1.

4. Add credentials in Scalekit

   • In Scalekit dashboard, go to Agent Auth → Connections and open the connection you created.

   • Enter your credentials:

     • Client ID (from above)
     • Client Secret (from above)
     • Permissions (scopes beginning with gmail — see Google API Scopes reference)



   • Click Save.

Usage

Connect a user’s Gmail account and make API calls on their behalf — Scalekit handles OAuth and token management automatically.

You can interact with Gmail in two ways — via direct proxy API calls or via Scalekit optimized tool calls. Scroll down to see the list of available Scalekit tools.

Proxy API Calls

Node.js

import { ScalekitClient } from '@scalekit-sdk/node';
import 'dotenv/config';

const connectionName = 'gmail'; // get your connection name from connection configurations
const identifier = 'user_123';  // your unique user identifier

// Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
const scalekit = new ScalekitClient(
  process.env.SCALEKIT_ENV_URL,
  process.env.SCALEKIT_CLIENT_ID,
  process.env.SCALEKIT_CLIENT_SECRET
);
const actions = scalekit.actions;

// Authenticate the user
const { link } = await actions.getAuthorizationLink({
  connectionName,
  identifier,
});
console.log('🔗 Authorize Gmail:', link); // present this link to your user for authorization, or click it yourself for testing
process.stdout.write('Press Enter after authorizing...');
await new Promise(r => process.stdin.once('data', r));

// Make a request via Scalekit proxy
const result = await actions.request({
  connectionName,
  identifier,
  path: '/gmail/v1/users/me/profile',
  method: 'GET',
});
console.log(result);

Python

import scalekit.client, os
from dotenv import load_dotenv
load_dotenv()

connection_name = "gmail"    # get your connection name from connection configurations
identifier = "user_123"      # your unique user identifier

# Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
scalekit_client = scalekit.client.ScalekitClient(
    client_id=os.getenv("SCALEKIT_CLIENT_ID"),
    client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
    env_url=os.getenv("SCALEKIT_ENV_URL"),
)
actions = scalekit_client.actions

# Authenticate the user
link_response = actions.get_authorization_link(
    connection_name=connection_name,
    identifier=identifier
)
# present this link to your user for authorization, or click it yourself for testing
print("🔗 Authorize Gmail:", link_response.link)
input("Press Enter after authorizing...")

# Make a request via Scalekit proxy
result = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/gmail/v1/users/me/profile",
    method="GET"
)
print(result)

Tool list

gmail_fetch_mails Fetch emails from a connected Gmail account using search filters. Requires a valid Gmail OAuth2 connection. 8 params ▾

Fetch emails from a connected Gmail account using search filters. Requires a valid Gmail OAuth2 connection.

Name Type Required Description

format string optional Format of the returned message.

include_spam_trash boolean optional Whether to fetch emails from spam and trash folders

label_ids array optional Gmail label IDs to filter messages

max_results integer optional Maximum number of emails to fetch

page_token string optional Page token for pagination

query string optional Search query string using Gmail's search syntax (e.g., 'is:unread from:user@example.com')

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_get_attachment_by_id Retrieve a specific attachment from a Gmail message using the message ID and attachment ID. 5 params ▾

Retrieve a specific attachment from a Gmail message using the message ID and attachment ID.

Name Type Required Description

attachment_id string required Unique Gmail attachment ID

message_id string required Unique Gmail message ID that contains the attachment

file_name string optional Preferred filename to use when saving/returning the attachment

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_get_contacts Fetch a list of contacts from the connected Gmail account. Supports pagination and field filtering. 5 params ▾

Fetch a list of contacts from the connected Gmail account. Supports pagination and field filtering.

Name Type Required Description

max_results integer optional Maximum number of contacts to fetch

page_token string optional Token to retrieve the next page of results

person_fields array optional Fields to include for each person

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_get_message_by_id Retrieve a specific Gmail message using its message ID. Optionally control the format of the returned data. 4 params ▾

Retrieve a specific Gmail message using its message ID. Optionally control the format of the returned data.

Name Type Required Description

message_id string required Unique Gmail message ID

format string optional Format of the returned message.

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_get_thread_by_id Retrieve a specific Gmail thread by thread ID. Optionally control message format and metadata headers. Requires a valid Gmail OAuth2 connection with read access. 5 params ▾

Retrieve a specific Gmail thread by thread ID. Optionally control message format and metadata headers. Requires a valid Gmail OAuth2 connection with read access.

Name Type Required Description

thread_id string required Unique Gmail thread ID

format string optional Format of messages in the returned thread.

metadata_headers array optional Specific email headers to include when format is metadata

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_list_drafts List draft emails from a connected Gmail account. Requires a valid Gmail OAuth2 connection. 4 params ▾

List draft emails from a connected Gmail account. Requires a valid Gmail OAuth2 connection.

Name Type Required Description

max_results integer optional Maximum number of drafts to fetch

page_token string optional Page token for pagination

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_list_threads List threads in a connected Gmail account using optional search and label filters. Requires a valid Gmail OAuth2 connection with read access. 7 params ▾

List threads in a connected Gmail account using optional search and label filters. Requires a valid Gmail OAuth2 connection with read access.

Name Type Required Description

include_spam_trash boolean optional Whether to include threads from Spam and Trash

label_ids array optional Gmail label IDs to filter threads (threads must match all labels)

max_results integer optional Maximum number of threads to return

page_token string optional Page token for pagination

query string optional Search query string using Gmail search syntax (for example, 'is:unread from:user@example.com')

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution

gmail_search_people Search people or contacts in the connected Google account using a query. Requires a valid Google OAuth2 connection with People API scopes. 6 params ▾

Search people or contacts in the connected Google account using a query. Requires a valid Google OAuth2 connection with People API scopes.

Name Type Required Description

query string required Text query to search people (e.g., name, email address).

other_contacts boolean optional Whether to include people not in the user's contacts (from 'Other Contacts').

page_size integer optional Maximum number of people to return.

person_fields array optional Fields to retrieve for each person.

schema_version string optional Optional schema version to use for tool execution

tool_version string optional Optional tool version to use for execution
